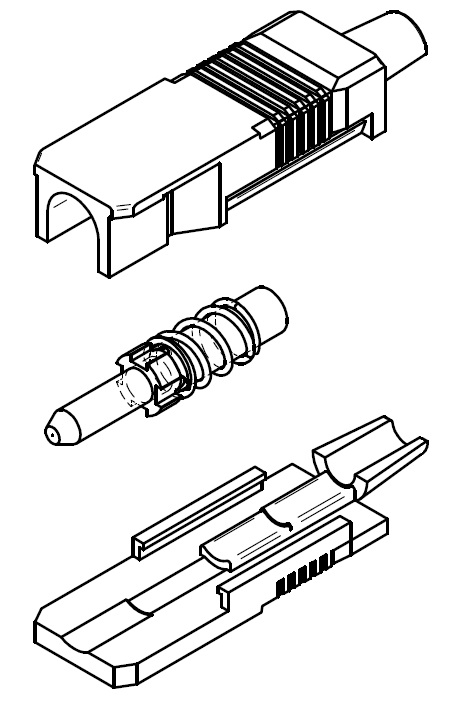

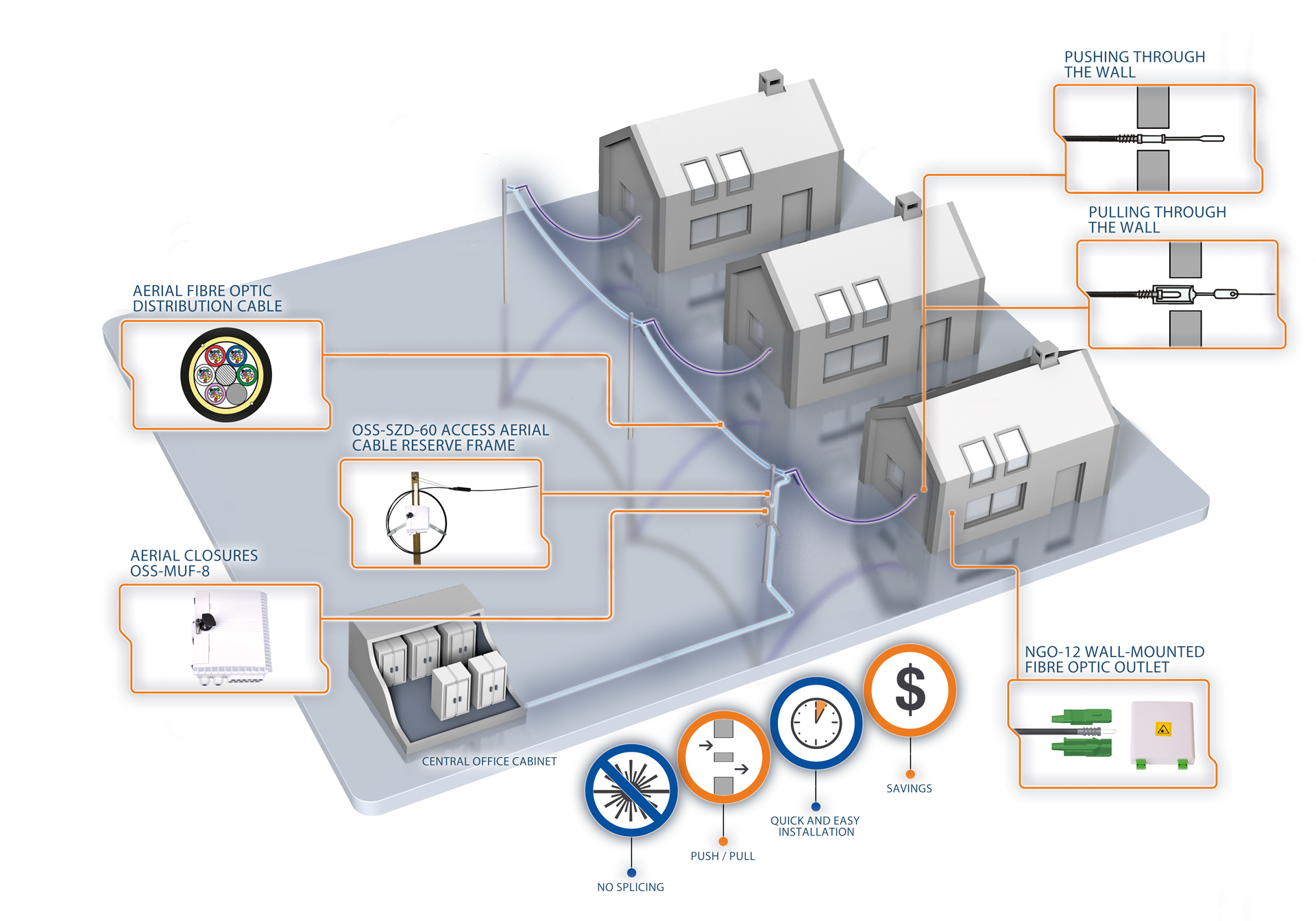

Push pull SC connector with divisible housing is the new version of the standard SC connector used in telecommunications technology for multiple fibre optic cable connections and disconnections. The novelty of the patented product is reduced, compared to the existing solution, dimensions of the internal ferrule body, which allows the installation of SC connector at subscriber’s apartment, to which the fibre optic will be pulled or pushed through the pipes system or small holes.
Connector with divisible housing allows the use of pipes and holes with a much smaller diameter than before. This is advantageous due to the reduction of installation costs. A significant feature is of the solution is that the SC connector with divisible housing can work with standard SC connectors and using standard SC adapters.
• Innovativepatchcord with patented factory terminated and polished connector with no need to use optical splicer
• Superior mechanical and environmental performance, designedfor indoor and outdoor installation
• Pulling / pushingthrough a hole with diameter 4.5mm
• No tool installation system reduces time and costs
• Excellent geometrical and optical parameters
• LSZH and UV resistant outer sheath
The innovative fibre optic connector housing developed by our engineers has beenpatent protected by the Polish Patent Office!
• Patent number: P.423729
• Industrial design right: 004417558-0001
| Standard | TIA /EIA 604-3(SC) |
| Connector type | SC |
| Ferrule type | UPC, APC |
| Insertion loss [dB] | 0,3 |
| Return loss [dB] | ≥ 50for UPC, ≥ 60for APC |
| Tensilestrength [N] | 100 |
| Operating temperature [°C] | from -40 to +75 |
| Standard | IEC794-1, EIA455 |
| Cross-section | round |
| Fibre type | SM(G657A1,G657A2,G657B3) |
| Cable diameter | 3,0 |
| Outer sheath colour | black, grey |
| Outer sheaththckness [mm] | 0,4 |
| Outer sheath type | LSZH, UV resistant |
| Unit weight [kg/km] | 8 |
| Maximum tensile strength [N] | 1000 |
| Outer sheath type | 20 x cable outer diameter |
| Operating temperature [°C] | from -40 to +70 |

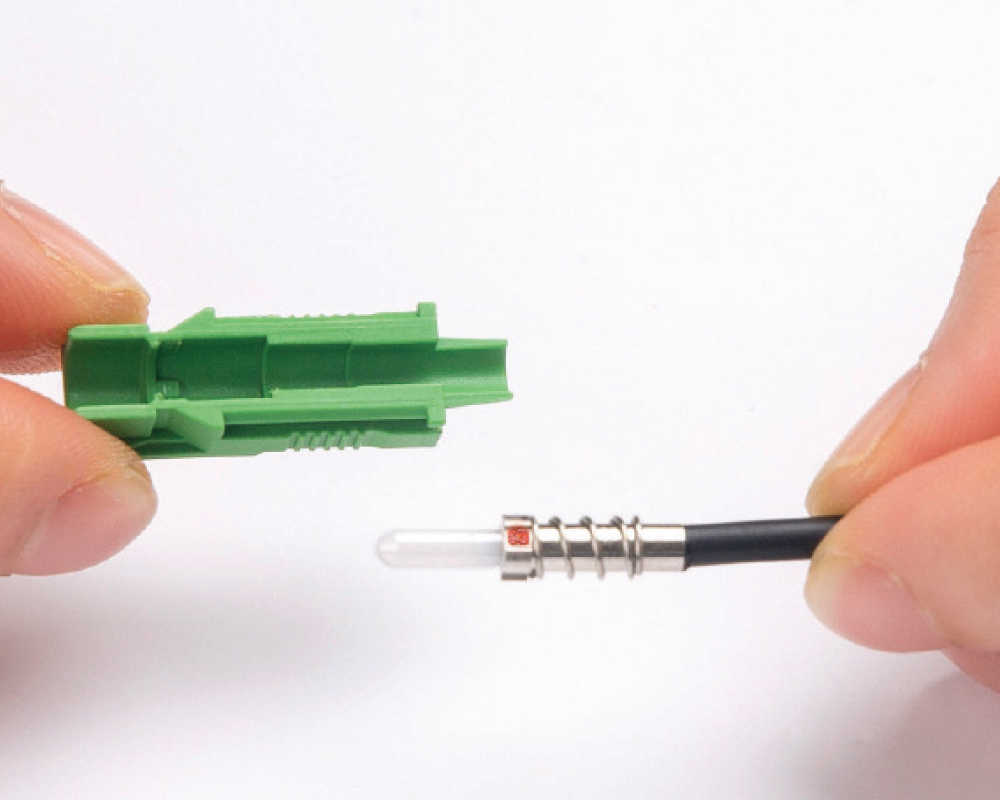

1. Locate a red mark on a ferrule housing and set connector housing with open side facing upwards (please note: no red mark for UPC ferrule).

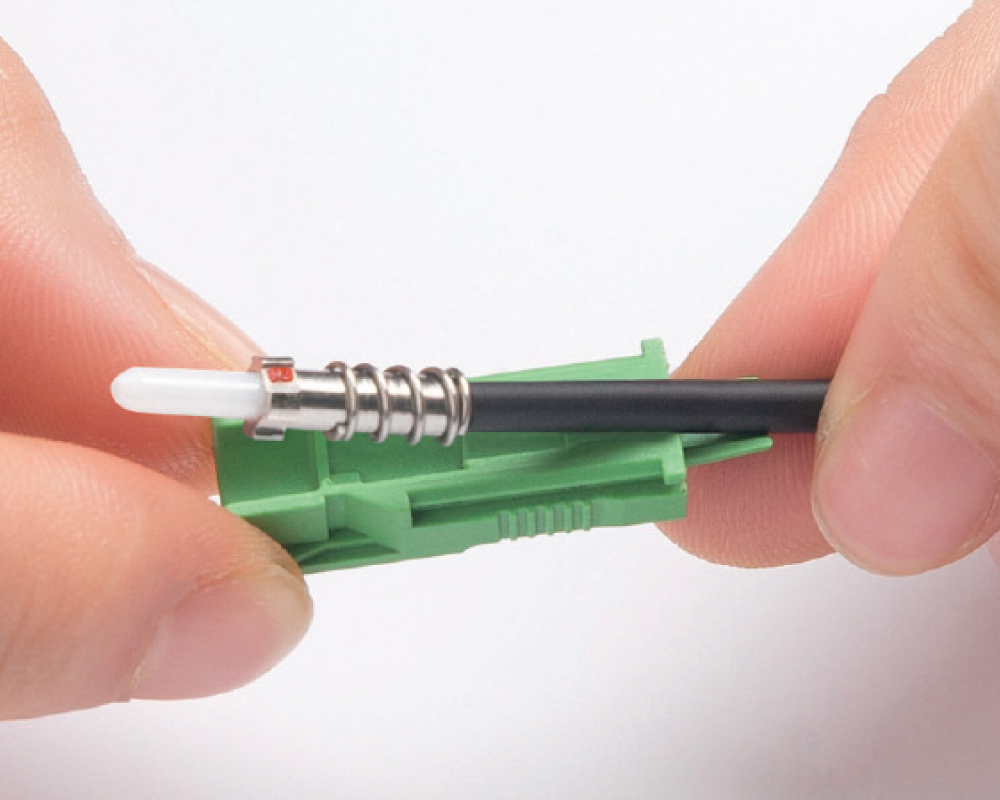

2. Place the ferrule at the enge of the housing. Red mark should be facing upwards.

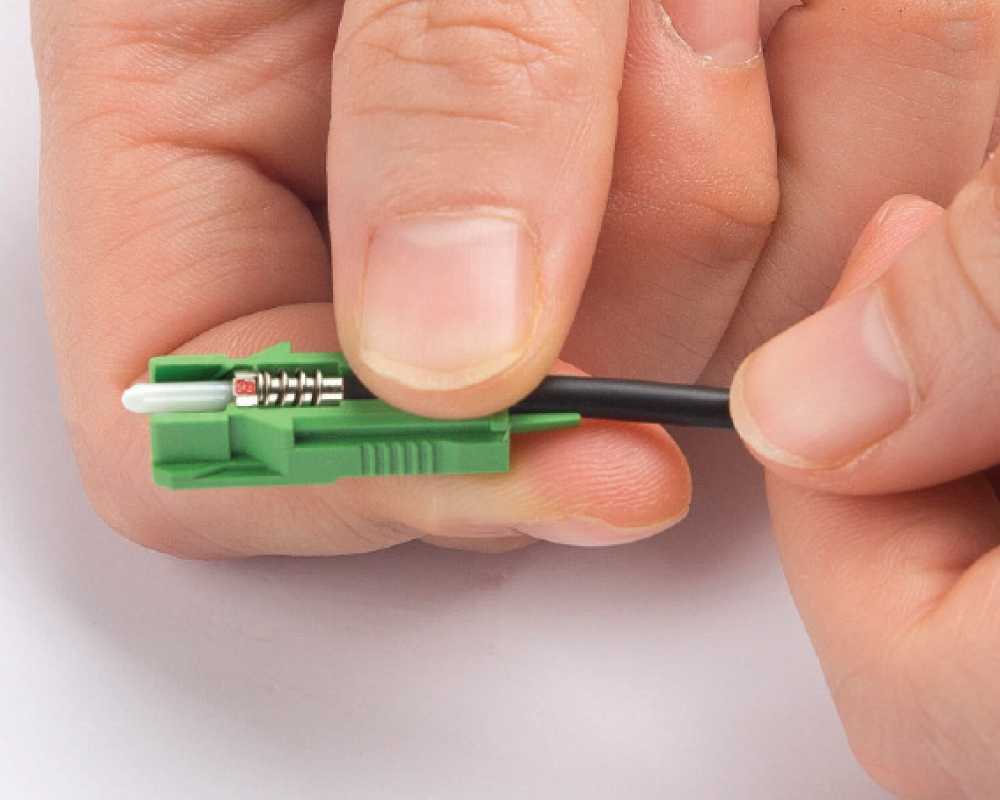

3. Pull the cable and push a spring inside the housing.

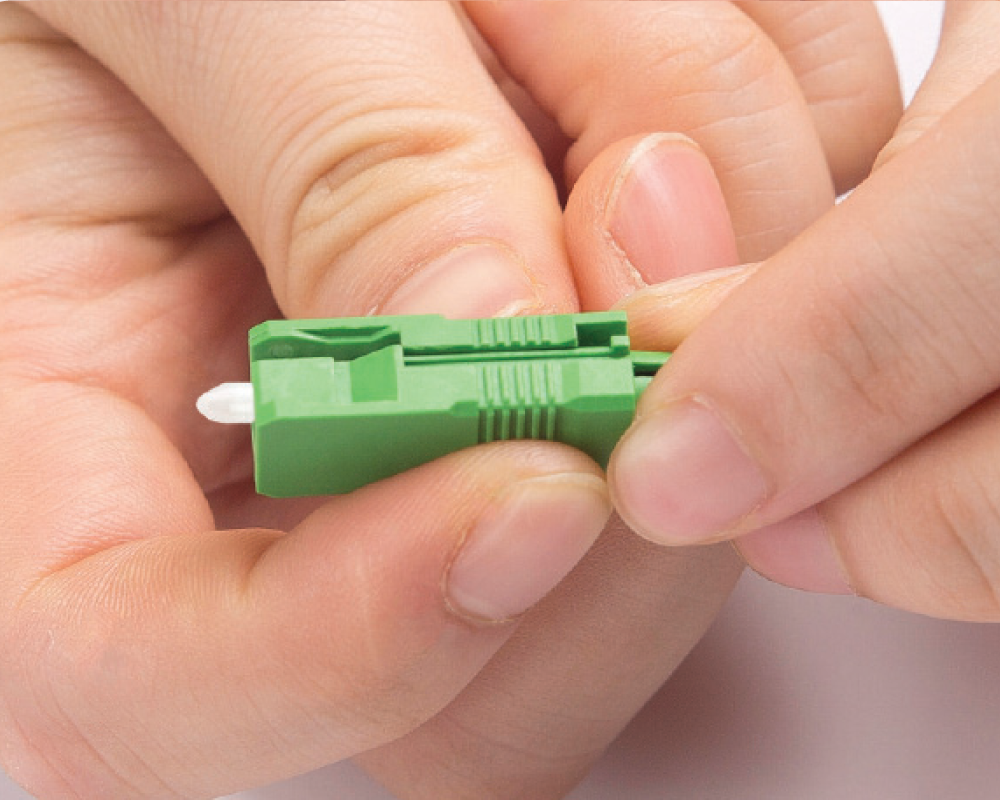

4. Place a housing lid and click it in.
